Bench terrace package developed from concept geometry into fabrication-ready steelwork for a balcony installation with planters, wire rope and composite cladding.

Industry: Steel Fabrication

Send a Sketch View all projects

3D CAD render of an L-shaped bench terrace with integrated planters.

What came in

Concept brief
Terrace layout requirements
Fabrication constraints

What was prepared

3D terrace assembly model
Fabrication drawing information
Steelwork layout for planters, cladding and wire rope details

Project notes

Challenge

This bench terrace needed to combine several materials and details into one buildable package, including steel wire rope, corten steel planters, a steel sub-structure and composite cladding.

Clarke CAD scope

Clarke CAD developed the terrace arrangement into a coordinated model and fabrication-led package so the steelwork, planter runs and surrounding details could be reviewed together before installation.

Deliverables

3D CAD model of the bench terrace assembly
Fabrication information for the steel sub-structure
Coordinated layout covering the planters, wire rope and cladding interfaces

Outcome

The result is a single terrace reference that helps move the concept into fabrication with the main steelwork and finish elements aligned around the same layout.

Project visuals

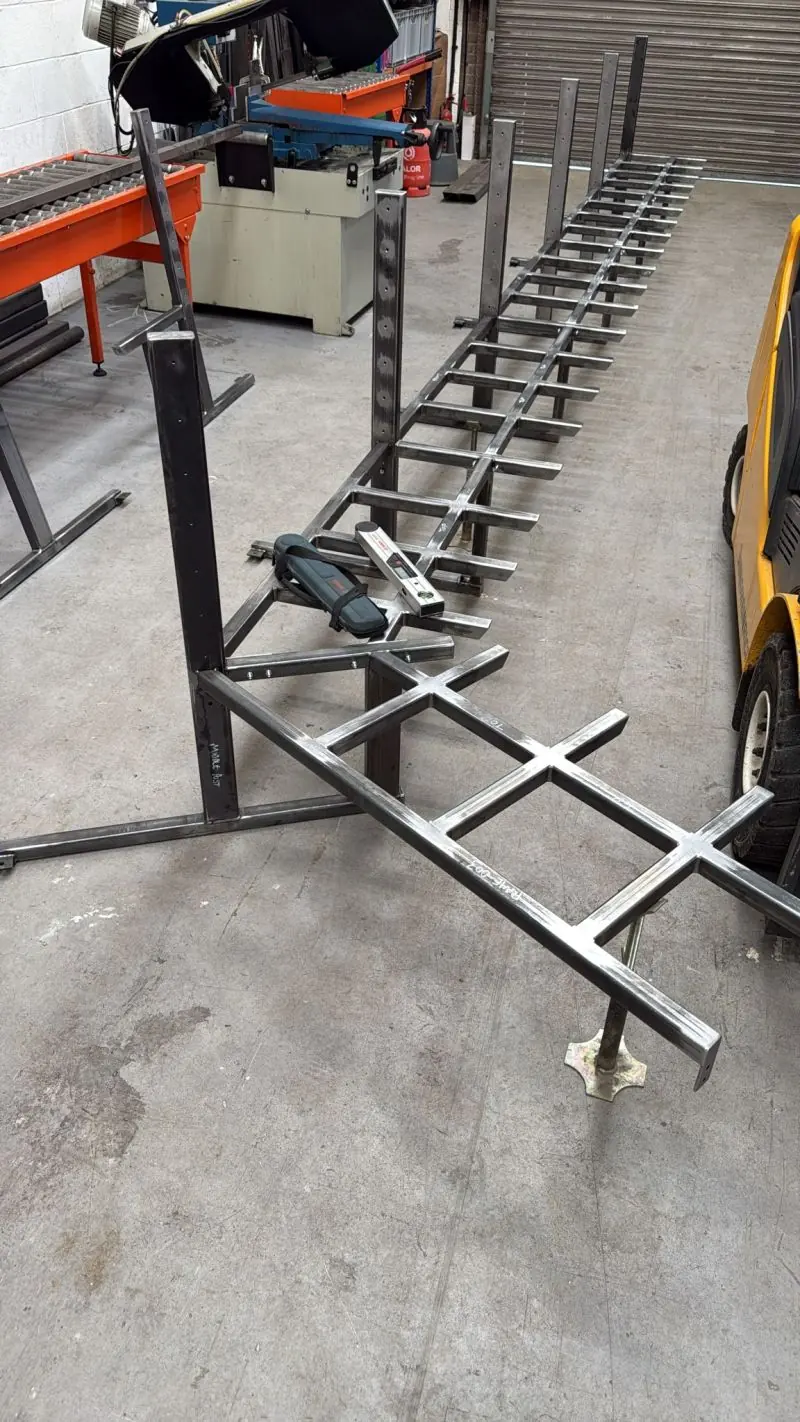

Part-fabricated steel bench terrace frame in a workshop. — Workshop progress view showing the main steel frame before the bench terrace assembly is completed.

CAD detail view of the bench terrace steel frame and upright support. — Detail view used to communicate the terrace frame members, supports and fixing references.
